Live Streaming Events

Equipment List

You will need the following equipment to live stream events.

• Canon XA60
• Canon XA60 Power Supply
• Canon Interface Cable IFC-4000U
• Camera Tripod
• Mac Mini with OBS Streaming Software
• Computer Monitor
• Computer Wireless Mouse & Keyboard
• Yamaha Mixer
• USB Cable for Mixer

Camera Setup

Connect the Canon XA60 to a tripod in the back of the room where you can get a clean angle on the content you want to capture on video. (Photo)

To ensure the camera doesn't disconnect during the event, connect the Canon XA60 to power using the power supply cord. (Photo)

Connect the camera to the streaming laptop via the IFC-400U interface cable. (Photo)

Turn the camera on by switching into camera mode.

Audio Setup

Set up the Yamaha Mixer at the back of the room.

Connect event microphones/audio to mixer.

Connect the Yamaha Mixer to the streaming laptop via the USB cable.

Streaming Setup

Set up the Mac Mini and computer monitor on a table near the camera and mixer.

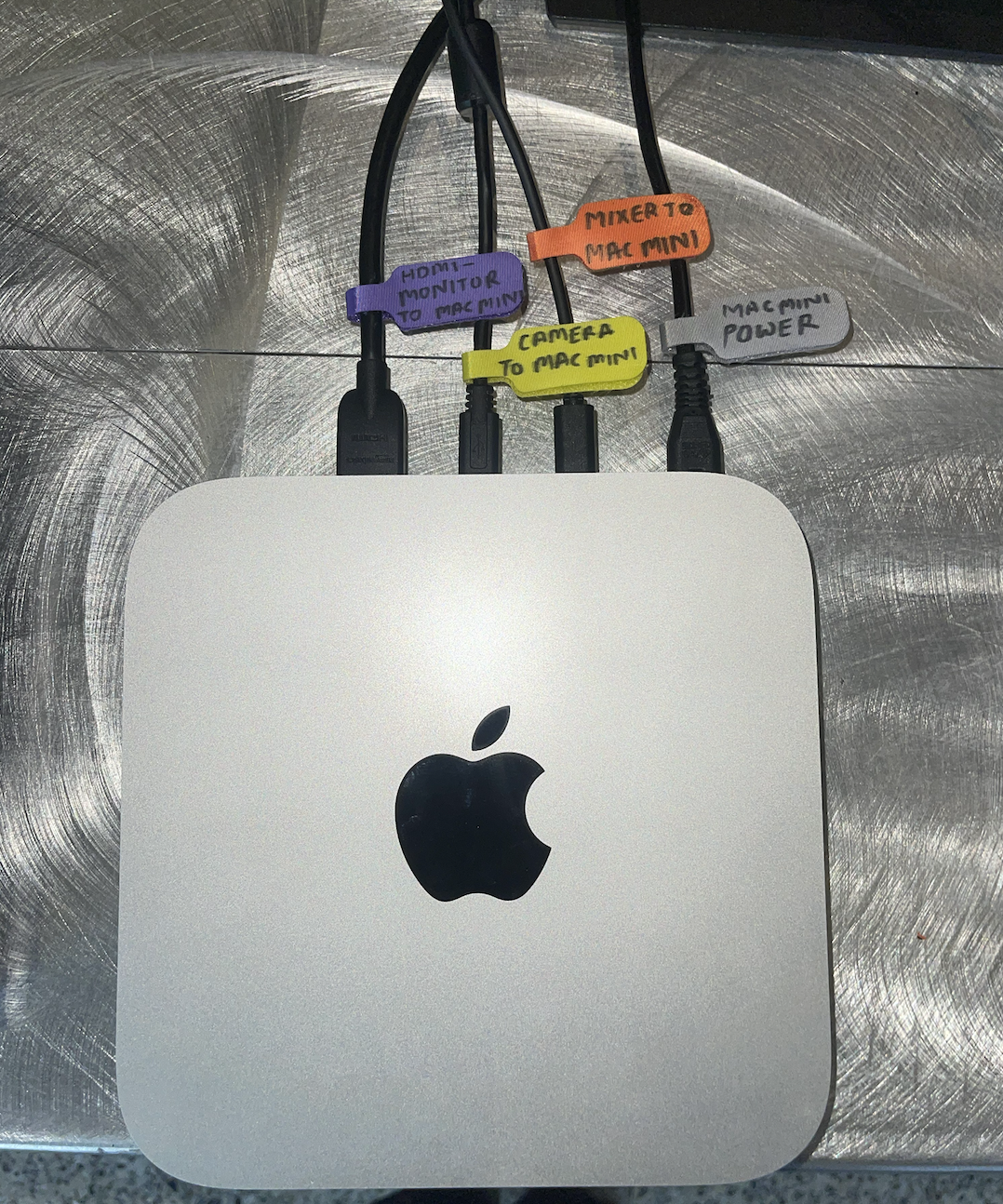

The Mac Mini Should have these connections

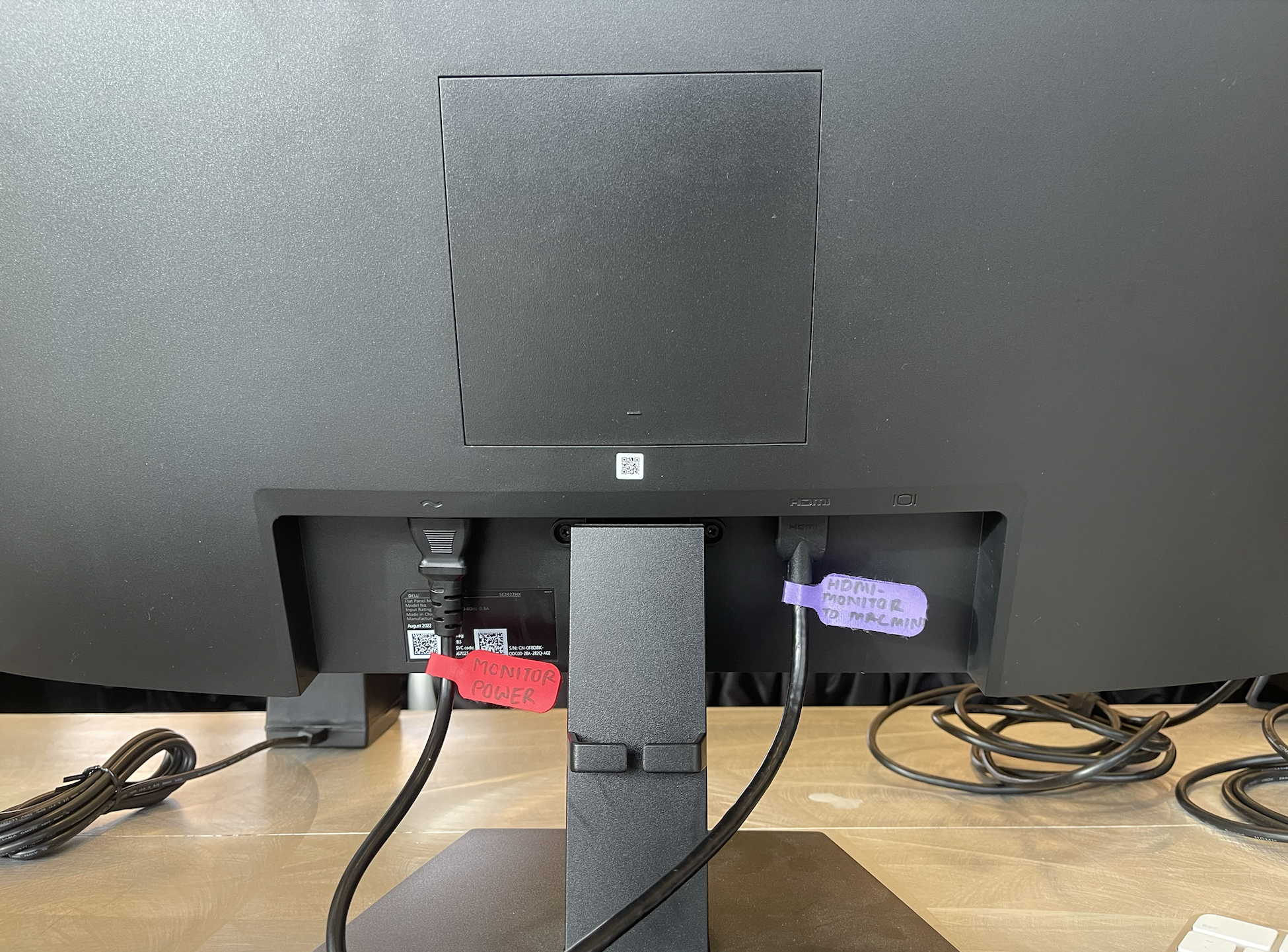

The back of the monitor should look like this

Streaming to Youtube

Open OBS Studio Software

Under the Profile menu, select Youtube

Ensure that the camera and audio are coming through.

Click on Manage Broadcast> Select Existing Broadcast > Click on the Correct Event > Select Broadcast

When ready to stream, click Start Streaming, and if necessary, click Go Live

Streaming to Zoom

Open Zoom Software

Sign in using the event planner's login.

Select Canon XA60 as the camera.

Select USB Audio as the Microphone.

Troubleshooting

AUDIO: If there is no audio for the Live stream

OBS should have an 'Audio Input Capture' recognizing the small mixer.

If not, delete and try adding Audio Input Capture again.

Check the source, laptop, mic, etc. Ensure they're on with batteries fully charged.

Check the mixer for loose connections, volume levels, and mute buttons.

VIDEO: If there is no video for the Live Stream

OBS should have a 'Video Input Capture' recognizing the Camera (CANON)

If not, delete and try adding Video Input Capture again.

Ensure that the Camera is plugged into power and for loose connection to the Mac Mini

If you do not see the existing broadcast, you can create a new broadcast to test the live stream, which would automatically be labeled 'My Broadcast'.
